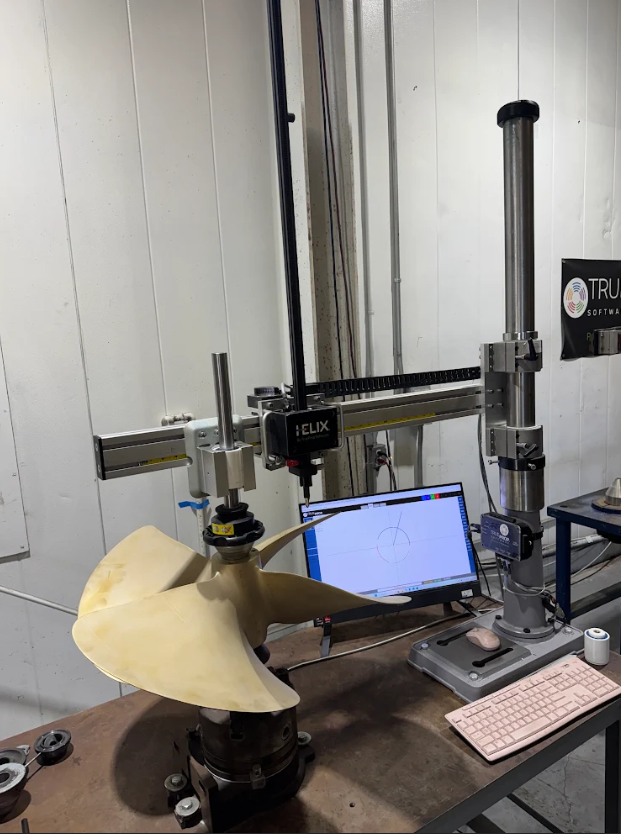

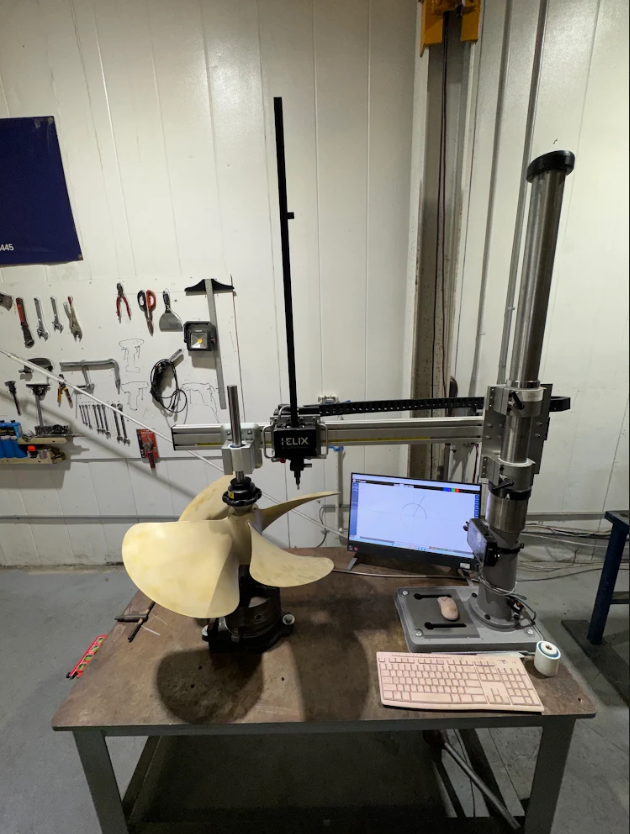

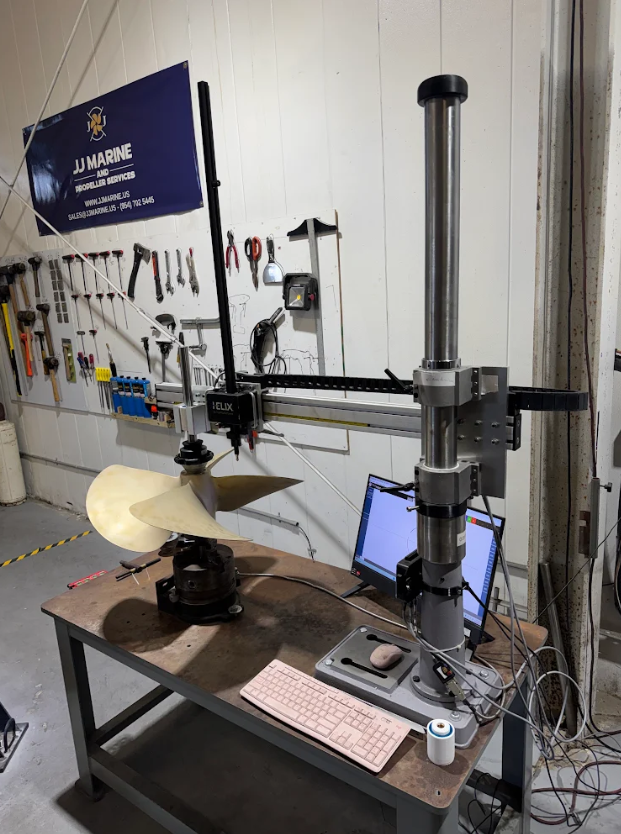

HELIX Pitchometer

The newest innovation from the team at TrueProp Software.

An entry-level pitchometer, HELIX ushers in advanced propeller measurement technology in a simple, easy to assemble and intuitive device.

Your Entry-level Table-top Kit

Designed for inspection of propellers up to 48 inches, this system includes fully digital measurement of angle, radius, and drop.

HELIX provides all the components to assemble your own digital pitchometer. The kit is shipped with four major pre-assembled components. The end-user is responsible for the final assembly, alignment and calibration of the machine.

  • Full digital measurement
  • Parts readily available
  • Easy to setup and use

The TrueProp Ecosystem

HELIX is part of a larger interconnected family. Dedicated to the next generation of propeller inspection, TrueProp provides clients with the most progressive, reliable, and accurate software. Now, the software you know and trust can work seamlessly with HELIX—at a price you can afford.

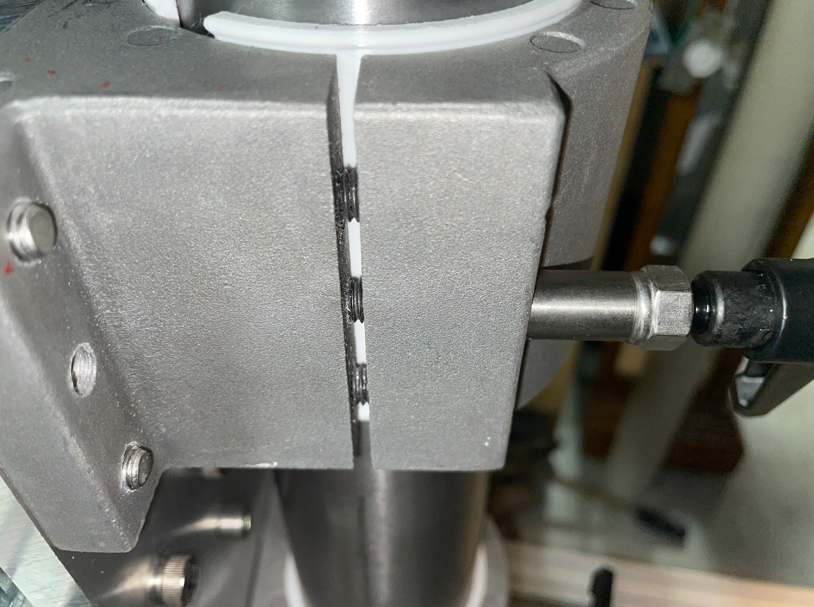

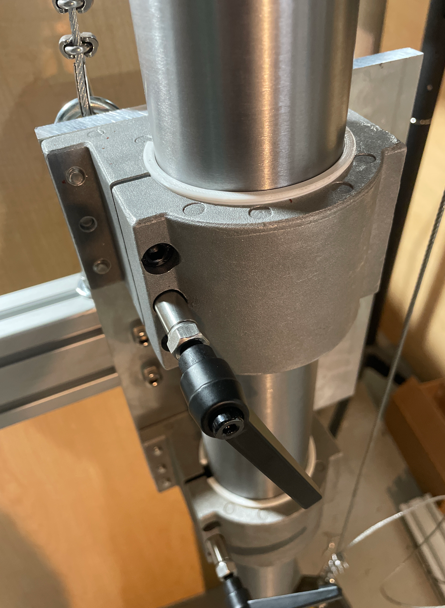

HELIX Rotary closeup

Rotary Table with 6" 3-jaw Chuck (reversible jaws)

  • Angle resolution:             0.028°
  • Prop mounting:                Chuck, Tension Cones
  • Comments:                       Options for Bores 3/4″ to 4”.

Drop Rod with Ball-tip Probe

  • Drop resolution:              0.0005”
  • Max travel:                      24”
  • Comments:                      M5 mount for scribe or ball-tip probes.

Radius Arm and Carriage

  • Drop resolution:              0.0005”
  • Max travel:                      25”
  • Comments:                      Radial measurements from 0 to 25”.

Contact us to order HELIX
