TrueProp for 3D Scanners

3D scanning systems are a viable replacement for digital pitchometers. The Virtual Import Plugin allows you to extract angle-drop data automatically. This data is then analyzed for Class compliance with TrueProp.

Advantages

Analyze your 3D scan using industry-standard tolerances (no more color maps!)
Propellers can be scanned in any position, including on the vessel
Scanning systems are portable
TrueProp can support any 3D scanner
Eliminates multiple arbors, chucks, and cones for different propeller bores
Many scanners have no restrictions on diameter, pitch, or blade overlap
Multi-purpose technology (great for struts and rudders, too)

“TrueProp has always been a core component of our propeller repair shop. The information it provides about the propeller helps us to quickly and reliably identify the defects and correct them. In 2024, we incorporated a metrology 3D scanner in our workflow, enabling us to scan propellers directly on the boat and grasp insights that were not possible before. The Virtual Plugin covers the missing gap between the STL output of the scanner and the radius that the ISO standard defines.”

Alex Roig

Nautic Center

Einscan HX2 Bundle

3D scanning systems are a viable replacement for digital pitchometers. The Virtual Import Plugin allows you to extract angle-drop data automatically.

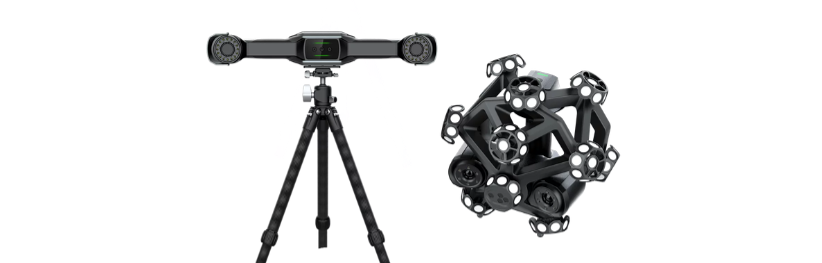

FreeScan Combo Bundles

TrueProp now offers a more powerful, metrology grade propeller virtual inspection package for scanning larger propellers even faster.

Technologies

Coordinate Measuring Machine

These machines measure points on the surface of an object. You can think of it as a digital pitchometer that measures X-Y-Z instead of R-Angle-Drop. These are diameter limited, because the propeller must fit inside the machine’s envelope.

Measuring Arms

These machines can measure points or scan blade surfaces using an articulated arm to move the measurement head. These are diameter limited due to the arm’s physical extension.

3D Laser Scanners

These devices are often handheld and scan blade surfaces using multiple light and laser sensors. The systems are very accurate, portable, and have fewer limitations for size and diameter.

Virtual Inspection Process

Capture

The 3D scanner’s native capture software is used to acquire the data from the propeller surface. Typically, this software covers calibration, alignment of multiple scans, and orientation of your model.

Export

Stereolithography files are industry-standard output from most (if not all) 3D scanners. These files recreate the geometry in small triangular patches. The files are very simple and the most basic level output by 3D scanner software. Traditionally, they are hard to work with but TrueProp makes it easy! In fact, TrueProp’s proprietary technology supports partial scans and scans with holes and cracks.

Extract

The TrueProp Virtual Plugin is used to import the STL geometry. The user can enter the proper diameter and select the radial positions for extracting ISO-484 data. This process mimics the traditional pitchometer process, etching scan lines into your 3D model.

Analyze

The data is brought into your current TrueProp project, allowing you to document the customer, manufacturer and model. The differences between each blade are reported based on the desired Class tolerance. This allows operators to analyze their 3D scan using the same quality measurements and visualizations required for propeller inspection and repair.

Report

TrueProp’s professional reports document the propeller’s quality in clear, concise terms and visualizations. They include your business information and logo! These reports provide confidence to customers and propeller shops alike that the work has been done right!

An Inside Look:

Virtual Propeller Inspection - 3D Laser Scanning
